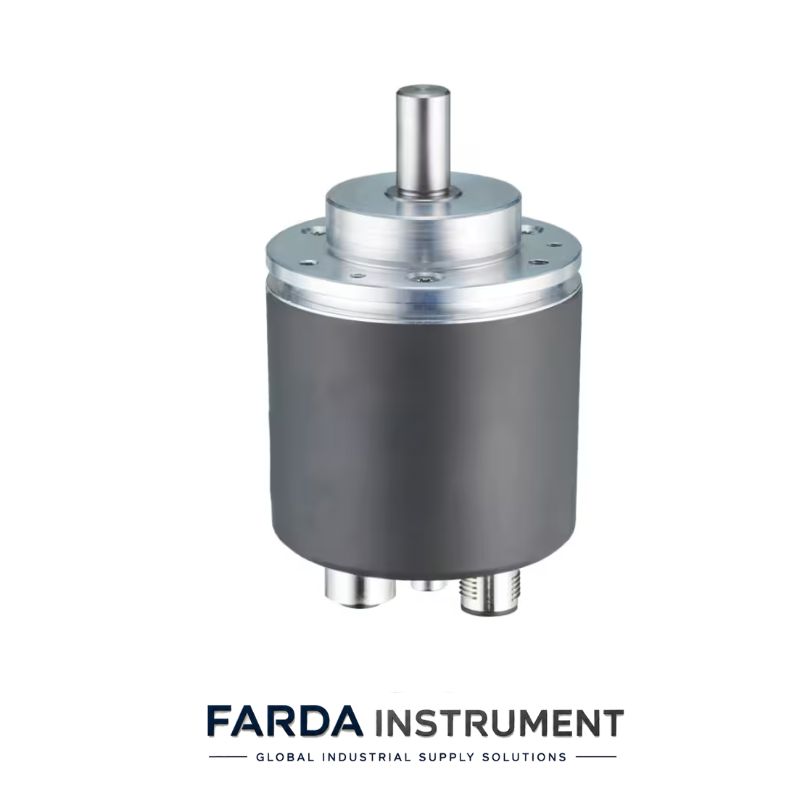

Resolution: 8,192 steps; 65,536 revolutions; 29 bit

Shaft design: Solid shaft

Shaft diameter: 10 mm

Function principle: Absolute

Revolution type: Multiturn

Detection system: Magnetic

Active operating temperature: -40…85°C

Operating voltage: 8…36 V DC

Current consumption: < 60 mA at 24 V DC

Power consumption: 1.5 W

Protection class: III

Reverse polarity protection: Yes

Overvoltage protection: Yes; < 60 V DC

Power-on delay time: < 2 s

Contact rating: Max. 1.5 A at 24 V DC

Code: Binary

Safety accuracy: 0.5°

Non-safety accuracy: 0.2°

Repeatability: ±0.1°; magnetic

Response time to safety request: 7 ms

Parameter setting options: Scaling, preset, baud rate, node ID, gear function, monitoring window, counting direction, speed parameters, integration time, ifm mode

Number of CAN interfaces: 2

Transmission rate: 20 kbit/s…1 Mbit/s

Terminating resistor: Yes; external M12, e.g. E11590

CAN protocol: CANopen, CANopen Safety, CAN Specification 2.0A

Factory baud rate: 250 kbit/s

Factory node ID: 32

CAN versions: CiA 406 V4.1.0; CiA 301 V4.2.0; CiA DSP-305 V3.0.0 LSS; EN 50325-4; EN 50325-5; ISO 11898

Ambient temperature: -40…85°C

Storage temperature: -40…90°C; dry conditions

Maximum relative air humidity: 98%

Maximum altitude above sea level: 5,000 m

Protection rating: IP67 / IP69K; with the ifm socket properly screwed on

EMC – ESD: 6 kV contact discharge / 15 kV air discharge

EMC – HF radiated: 20 V/m (27…1,000 MHz), 10 V/m (1,000…2,000 MHz), 3 V/m (2,000…6,000 MHz)

EMC – Burst: 4 kV

EMC – Surge: 2 kV (screen)

EMC – HF: 20 V

EMC – Class: B

Magnetic fields: 30 A/m (50 Hz) / 1,000 A/m (0 Hz)

Radiated immunity: 100 V/m (400…3,000 MHz)

Conducted immunity: 12 V / 24 V

Vibration resistance: 15 g (15…2,000 Hz) / 1 octave per minute in 3 axes

Broadband noise: 15 g / 50…2,000 Hz, 1 hour per axis, 1 octave per minute

Shock resistance: 100 g, 6 ms half-sine; 100 shocks in every direction of the 3 coordinate axes

Salt spray resistance: Severity level 5

Safety classification: ISO 13849-1 Category 3, PL d; IEC 61508 SIL 2; IEC 61800-5-2; IEC 61800-5-3

Mission time TM: 175,800 hours

Additional mission time: 20 years

PFH: 2.00 × 10⁻⁸ 1/h

Weight: 547.3 g

Housing: Cylindrical

Dimensions: Ø58 mm / L = 98.8 mm

Housing material: Aluminium

Flange material: Aluminium

Seal material: NBR / HNBR

Display material: UV-stabilised polycarbonate

Connection material: Nickel-plated die-cast zinc, axial/radial

Maximum mechanical revolution speed: 6,000 rpm

Maximum starting torque: 0.05 Nm

Reference temperature for torque: 20°C

Shaft material: Stainless steel 303 / 1.4305

Maximum axial shaft load at shaft end: 80 N

Maximum radial shaft load at shaft end: 100 N

Fixing flange: Clamping flange; Ø58 mm

Preoperational mode indicator: Green flashing LED

Operational mode indicator: Green LED

Error message indicator: Red flashing LED

Mounting material: Not included; fixing must be performed by the user

Application suitability: Suitable for earthmoving and construction machines and industrial trucks

Safety application: Suitable for applications up to Ag PL d according to ISO 25119 and up to MPL d according to ISO 19014-3

Pack quantity: 1 pc.

CAN-in connector: 1 × M12; A-coded; 5 contacts

CAN-out connector: 1 × M12; A-coded; 5 contacts

Connector protection: Open M12 connections must be covered with suitable protective caps
