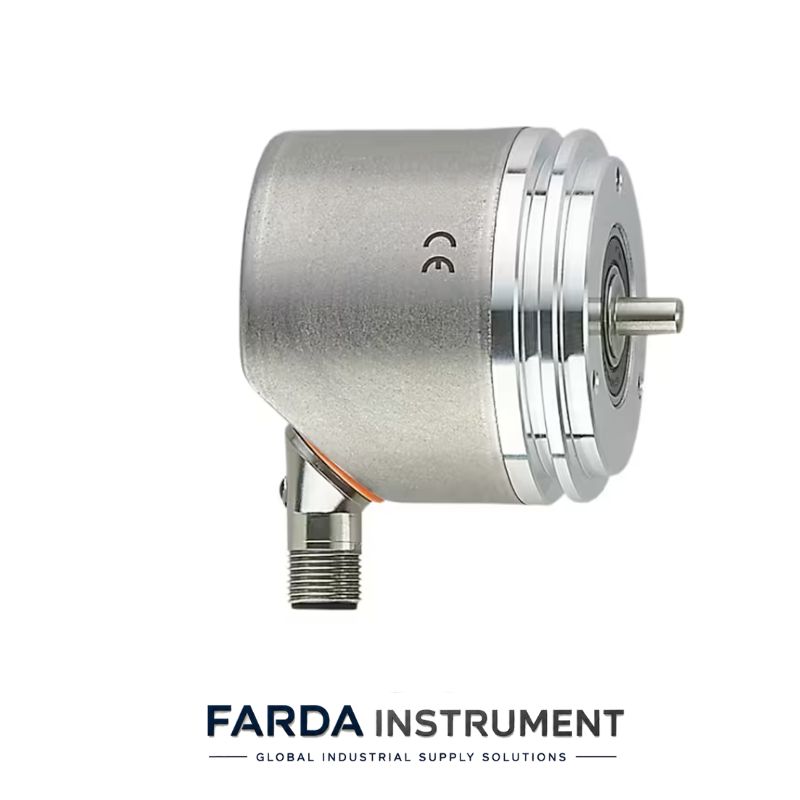

Resolution: 65,536 steps; 32,768 revolutions; 31 bit
Shaft design: Solid shaft
Shaft diameter: 6 mm
Function principle: Absolute
Revolution type: Multiturn
Detection system: Magnetic
Operating voltage: 18…30 V DC
Current consumption: < 75 mA
Protection class: III (PELV)
Reverse polarity protection: Yes
Short-circuit protection: Yes
Power-on delay time: < 1,000 ms
Code: Binary
Accuracy: 0.1°
Parameter setting options: Preset, zero point, counting direction, velocity parameters
Communication interface: IO-Link
Transmission type: COM3 (230.4 kBaud)
IO-Link revision: 1.1
SIO mode: No
Minimum process cycle time: 2.3 ms
Ambient temperature: -40…85 °C
Storage temperature: -40…85 °C
Maximum relative air humidity: 98%; without condensation
Protection rating: IP65; housing IP67; shaft IP65
Vibration resistance: 30 g (10…1,000 Hz)
Shock resistance: 100 g, 6 ms
MTTF: 283 years
Weight: Approximately 362.9 g
Housing: Cylindrical
Dimensions: Ø58.6 mm / L = 63.5 mm
Housing material: Stainless steel
Flange material: Aluminium
Shaft material: Stainless steel
Maximum mechanical speed: 12,000 rpm
Maximum starting torque: 1 Nm
Maximum axial shaft load: 40 N
Maximum radial shaft load: 110 N
Fixing flange: Synchro flange
Diagnostic functions: Internal temperature, operating hours counter, switching cycles
Connection type: M12 connector; 5 contacts; A-coded; radial/axial adjustable
